The Tale of an Alternator

Taking a break from giving maintenance advice to others, AVweb editor Mike Busch troubleshoots and resolves an alternator problem on his Cessna T310R, and manages to save about $1,000 in the process. He offers an interesting case study in how a maintenance-involved aircraft owner can get better maintenance for less money. After all, if you can save $1,000 here and $1,000 there, pretty soon you’re talking real money! Also some helpful suggestions for dealing with those elusive intermittent problems that never seem to happen when the A&P is watching.

MaintenanceInmy roles as a frequent contributor to AVweb's maintenance section, and as amember of the technical staff of the Cessna PilotsAssociation, I spend a good deal of time helping other aircraft owners totroubleshoot and fix problems with their airplanes. From time to time, however, I have todeal with glitches on my own airplane.

A good case in point was the charging system problem that I encountered recently on my1979 Cessna T310R. There was nothing particularly unusual about this problem or how it wasultimately resolved, but I thought some of you might find it interesting to read about thethought processes that one maintenance-involved aircraft owner (me) went through introubleshooting the problem and dealing with it.

The problem first arose during a 4,000-NM cross-country trip in early April that tookme from my home base at Santa Maria, Calif. [SMX], to Champaign, Ill. [CMI], for threedays of simulator-based recurrent. The flight from SMX to CMI was mechanicallyuneventful-luckily, since the flying weather was simply awful-and the training atRecurrent Training Center went well.

My itinerary for the return flight westbound included stops at Wichita, Kan. [ICT] (tovisit with some folks at Cessna), Independence, Kan. [IDP] (to see how things were goingat Cessna's single-engine plant), and Tulsa, Okla. [TUL] (for a meeting with LowranceElectronics) before finally heading back to California.

First sign of trouble

Meter and lights verify the problemAs I started engines at CMI for the legto ICT, I noted that the amber "Right Alternator Fail" light did not extinguish.After muttering the obligatory expletive, I confirmed the indication by shutting off theleft alternator and using the cockpit volt/ammeter to verify that (a) the right alternatoroutput current was zero, (b) the battery was discharging, (c) the bus voltage was 24 volts(rather than 28), and (d) the red "Low Voltage" light came on. Clearly, therewas a problem with the right alternator. [From engine start to confirmed diagnosis ofcharging system failure took perhaps ten seconds…probably less time that it took youto read this paragraph.]

At this point, I had to decide what to do. The most conservative decision would havebeen to shut down and find a mechanic. That also would have been the FAA-approved thing todo, since both alternators are required equipment and a twin Cessna with onenon-functioning alternator is technically unairworthy.

On the other hand, this would probably mean that I'd have to cancel or reschedule myappointments at ICT, IDP and TUL. Furthermore, Wichita seemed like a much better place todeal with a mechanical than Champaign, since ICT has one of the best twin Cessna shops inthe country (Yingling Aircraft), not to mention the world's best supply of twin Cessnaparts. The weather between CMI and ICT was severe VFR, so I didn't consider a flight withone alternator inop to be even slightly risky, even though it would have been technicallyillegal.

Transient anomaly?

As I was wrestling with all these go/no-go considerations-it was now perhaps 30 secondssince engine start-something quite unexpected happened that simplified my decision makingconsiderably. The "Right Alternator Fail" light went out! I quickly repeated myvolt/ammeter confirmation procedure and there was no question about it: the rightalternator was working just fine now. This made my decision a no-brainer…I'd fly toWichita and sort things out there.

As fate would have it, the right alternator performed flawlessly for the balance of thethree-hour flight to Wichita. Two days later, I fired up the airplane once again for theshort 30-minute hop to Independence, and again the right alternator seemed just fine. Itwas also fine on the leg to Tulsa. And on the following day, during the eight-hour flightback to Santa Maria, Calif. (with a fuel stop in Albuquerque), it never once hiccuped.

I've developed a term for problems like this that appear briefly and then go awaywithout explanation. I call them "transient anomalies." I've encountered lots ofthem in my 30 years of aircraft ownership, and I've learned not to let them keep me awakeat night.

My theory about the best way to deal with most "transient anomalies" is quitesimple: sit tight, wait awhile, and see what happens. It's next to impossible to make goodmaintenance decisions about a transient anomaly in its "transient" phase,because a mechanic can hardly be expected to troubleshoot a problem that he cannotreproduce.

If you ask your mechanic to fix such a problem, about the best he can do is to use a"shotgun" approach: make a guess at where the problem might lie, replace thesuspected component, and hope the problem goes away. If it doesn't, he'll take anotherguess and replace some other component. (Traditionally, the first component to be replacedis the most expensive one.)

On the other hand, if you just sit tight and wait awhile, one of two things is likelyto happen: either (1) the problem will get worse, or (2) the problem will go away and maynot recur for years (or perhaps ever). If the problem gets worse, it's a lot more likelyto be reproducible and therefore amenable to troubleshooting. If the problem goes away,it's not worth worrying about (although it's undeniably aggravating that the cause remainsunknown).

Now although this "sit tight and wait awhile" philosophy has served me wellover the years, I hasten to point out that it's appropriate only when dealing withproblems that are clearly non-life-threatening. For example, if you observe majorfluctuations in engine oil pressure for 30 seconds, after which everything returns tonormal, I would definitely NOT recommend taking the "sit tight and waitawhile" approach. Prudence would demand landing at the first opportunity andinspecting the engine oil filter and propeller governor gasket screen for the presence ofmetal. Transient oil pressure fluctuations are most often caused by a chunk of somethinggetting caught in the oil pressure relief valve and interfering with its ability toregulate oil pressure, and must be considered a Very Bad Thing.

But I digress. We were talking about my transient alternator anomaly, weren't we?

Sure enough, it got worse!

After returning to California, I didn't have occasion to fly the airplane again fornearly three weeks. By now, it was the second week of May and I needed to fly to Tucson,Arizona, for the Cessna Pilots Association convention.

When I fired up the airplane, the right alternator did not come on-line…seeminglya replay of the scenario I'd faced at Champaign. I waited for a minute to see if thealternator would "cure itself" as it had before. Then I waited another minute.No dice.

Once again, I weighed my alternatives. I knew that there's an excellent shop at Tucsonwhere the problem could be worked on while I gave my seminars. I also knew that there wasno chance anyone had a replacement Prestolite 100-amp alternator on the field at SMX.

Besides, I had no way of knowing whether the alternator was at fault. The symptomscould have just as easily been caused by a bad regulator, a bad field switch, a fieldfuseholder, or even a fractured wire, loose connection, or cold solder joint. Clearly,some serious troubleshooting was the first order of business.

The weather for the flight to TUS was VFR all the way. Making the flight on onealternator would be perfectly safe, I told myself, albeit technically illegal. I startedtaxiing out to the runup area, still undecided about what to do. About halfway there, theright alternator decided to come on-line!

That settled it. I took off and flew to Tucson. The right alternator worked fine."Just as soon as I get back," I vowed to myself, "I simply musttroubleshoot this problem and get it fixed." I knew that I had a very long tripscheduled for next month (June) that would take me all the way to Key West, Florida, andthen over Cuba to the Cayman Islands (where I'd been invited to give a maintenance seminarat Cayman Islands International Aviation Week). No waywas I about to undertake a trip like this with a flakey charging system!

As if to hold me to my promise, the right alternator failed again during the returnflight from TUS to SMX, and never came back on-line. I was actually glad about that. Itwould make my troubleshooting easier.

Troubleshooting time

The next day, I headed down to the airport with my trusty Fluke 77 volt-ohmmeter, acouple of alligator clip leads, and my parts and service manuals. I was determined to getto the bottom of this. I had no idea whether the alternator, regulator, or wiring was atfault, but since the regulator was the easiest component to get at-mounted beneath thecopilot's seat-I decided that was as good a place to start as any.

The regulator checked out fineI powered up the aircraft and measured the voltagebetween the regulator field terminal and ground. It was 24 volts, just as it should be. Ithen disconnected the field lead from the regulator terminal and measured the fieldcurrent going to the alternator. It was about 1.75 amps, which once again looked normal.

I concluded that the regulator was probably working okay, and that the fault was morelikely in the alternator itself. (This was not the result I'd been hoping for,since the alternator is something of a pain to remove and reinstall, and is quiteexpensive to replace.)

With the meter still hooked up to measure field current, I got out of the cockpit andwalked around to the front of the airplane. I grabbed a propeller blade on the rightengine and started to rotate the crankshaft while watching the alternator field current onthe volt-ohmmeter. Aha! As I turned the prop, the field current suddenly started jumpingall over the place, from zero to 1.75 amps in highly erratic fashion. Clearly, there was amechanical problem in the alternator field.

Then, as I continued rotating the prop, I heard a funny noise and something caught myeye. I quickly realized that what I was hearing and seeing was electrical arcing visiblethrough the end cap of the alternator. Every time the field current jumped from 1.75 ampsto zero, I could see and hear a big spark coming from inside the alternator, in thevicinity of the brushes and slip rings.

Clearly, then, the alternator was at fault, and would have to come off the engine andbe repaired or replaced. The troubleshooting phase was complete.

Nothing I can't handle, right?

Removing and reinstalling the alternator seemed like something I should be able tohandle myself. On the other hand, since I'm not an A&P and since removing andreinstalling an alternator is not on the list of preventive maintenance items that anowner/operator is permitted to do on his own recognnaissance (FAR Part 43 Appendix A), Iwas going to have to find an A&P willing to supervise and sign off my work.

A rebuilt 100-amp alternator costs $1,000!I went upstairsto the Cessna Pilots Association office and found Tom Carr, a member of the CPA technicalstaff who is an experienced twin Cessna mechanic and who served as the IA on my lastannual inspection. I explained to Tom what I'd found, and asked him if he'd supervise andsign off the removal and reinstallation of my right alternator. He said okay. I headedback downstairs to the airplane, and about 30 minutes later (with Tom's helpfulencouragement) I had the alternator off the airplane and in my hands. Getting it off waseasy enough, but in the process I could tell that reinstalling it was going to be a lottrickier.

An ohmmeter check across the alternator field terminals confirmed that the resistancejumped all over the place as I rotated the alternator shaft by hand. Definitely a fieldproblem, probably brushes or slip rings.

Okay, now what?

Who ya gonna call?

I checked my maintenance logs to see how long the alternator had been in service. Theanswer turned out to be only about 400 hours. That's pretty youthful for an alternatorthat theoretically should last for a full engine TBO.

At this point, most maintenance shops would simply order a rebuilt alternator on anexchange basis. But because my alternators are massive 100-amp Prestolite ALV-9510s (usedon most known-ice-equipped twin Cessnas), I knew this would be an expensive way to go. Toconfirm this, I called Electrosystems in Ft. Deposit, Alabama, and Aero Electric inWichita, and both quoted me an exchange price of about $1,000 (plus a hefty core deposit)for a rebuilt ALV-9510.

This seemed to me like an unnecessary waste of money, since my alternator had such lowtime on it and probably just needed new brushes or something else equally simple. Ibriefly considered the possibility of opening up the alternator myself to find out exactlywhat was wrong with it, but after discussing that idea with Tom Carr, we concluded that wedidn't have the necessary tools to take the thing apart, nor the necessary parts to put itback together and bench-test it properly.

I decided my best strategy was to find an aircraft accessory shop that was qualifiedand willing to do an "IRAN" on my alternator. ("IRAN" is an acronymfor "Inspect and Repair As Necessary," and is an aviation term-of-art meaning"don't do a full overhaul, just fix what's broken.") I asked my colleagues onthe CPA Technical Staff (John, Steve and Tom) if they knew of any shops that would do thisfor me, but no names came immediately to mind.

CPA has a saying: "if we don't know the answer to a Cessna-related question, weusually know who does!" So I prevailed upon Steve to phone a friend at Tom's AircraftMaintenance Inc., a well-known Southern California twin Cessna maintenance facility,explained the situation, and "if this was your alternator, where would you sendit?" Tom's suggested a small shop that none of us had ever heard of: Baker AeroElectric (310-539-9789) in Torrance, Calif.

Dave to the rescue

When I phoned Baker Aero Electric, Dave Baker answered. I explained my predicament andasked if he'd be willing to open up my alternator, figure out what was wrong with it, andrepair only what needed to be repaired. "Sure," Dave replied. I boxed up thealternator and took it over to the local UPS office. Dave received it the following dayand had it repaired, tested, and on its way back to me within 24 hours.

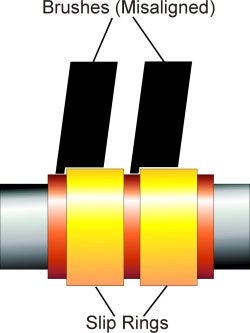

Misaligned brushholder was responsible.I called Dave toask what he'd found wrong with my alternator. He said he found the brush holder was bent(something that probably occurred when the alternator was last overhauled), and that thebrushes weren't properly aligned with the slip rings. As a result, the brushes graduallydeveloped a "lip" where they hung off the edge of the slip rings. In time, thelip got big enough to touch the rotor and prevent the brushes from making proper contact.The solution was simply to bend the brush holder back to its proper shape and install newbrushes. Dave said he also cleaned the slip rings, inspected the rotor, stator and diodes,reassembled the alternator and bench-tested it. He even threw in a new mounting gasket.The tab for all this (including return shipping and insurance) was a mere $103.00!

Gee…don't you just love it when a plan comes together!

Finishing the job

Shortly after UPS delivered my care package from Baker Aero Electric, I showed Tom Carrthe repaired alternator and the accompanying maintenance release paperwork, and told him Iwas ready to reinstall the alternator on the right engine.

The alternator is secured to the engine crankcase with four mounting studs, two ofwhich are very difficult to reach. It took me the better part of an hour to get the nutsstarted on those two lower studs, but I finally succeeded (and was very proud of myself).I looked up the proper torque for the four mounting nuts, but found that I simply couldnot get a wrench on either of the two lower nuts, even after exhausting every -inchwrench in my toolbox (including offset, crow's foot, dog bone, etc.).

I went to Tom for help, and he gave me that "been there, done that" smile."I've got some special 'trick' wrenches in my toolbox that should make the job mucheasier," Tom revealed. I prevailed on him to let me borrow his special wrenches(which were obviously non-standard tools that had been ground down and bent just forsituations like the one I was facing). Tom's trick wrenches made torquing down thoseotherwise-unreachable nuts a piece of cake. Then all that was left was to reattach thewiring harness to the alternator's five screw terminals.

I told Tom that I was done with the installation and ready to cowl up and give thealternator a "smoke test." Tom inspected the installation very carefully, pokinghere and tugging there while I watched nervously, and finally gave it a thumbs-up. Ire-cowled the engine, pulled the aircraft out of the hangar, fired up the engines, andgave the charging system an extra thorough functional check. Everything appeared normal.

I brought my maintenance logs to Tom and told him that I'd finished ground-running theengines, and the charging system seemed to check out 100%. We stapled the Baker AeroElectric paperwork in my right engine logbook, then I made and signed a logbook entry forthe alternator removal and reinstallation, and finally Tom made and signed an entryapproving my installation work.

Just to make sure, I took the airplane up on a 30-minute test flight. Everything workedexactly as advertised. I was a happy camper.

So what's the point?

My purpose in writing this article is to underscore a few of the ways in which anaircraft owner can benefit by getting more involved in the maintenance of his aircraft.Let's review.

First, in the face of an annoying but intermittent problem (what I call a"transient anomaly"), a maintenance-savvy aircraft owner will consider sittingtight and waiting to see whether the problem gets worse or goes away by itself. If it getsworse, it'll be much easier to troubleshoot. If it goes away, it's not worth worryingabout unless and until it reappears.

Second, a maintenance-savvy owner will always make a real effort to investigate andtroubleshoot a problem so he can tell his mechanic exactly what's wrong ("the rightalternator has an intermittent field, with electrical arcing visible through the end capas the propeller is rotated by hand-probably bad brushes") rather than offer only ageneral description of the problem ("the right alternator fail light is coming onintermittently"). This is especially important for problems that cannot easily bereproduced on the ground.

Third, a maintenance-savvy owner can frequently save a lot of money by researchinglower-cost alternatives to expensive parts replacement. In this case, by making a fewphone calls, I was able to resolve the problem with a $100 repair instead of a $1,000overhaul/exchange. This is an area in which one phone call to the Cessna PilotsAssociation technical support line can easily repay your membership dues a dozen timesover. CPA can usually suggest the most cost-effective way to resolve almost any Cessnamaintenance problem…and if we don't know the answer, we know who knows!

Finally, a maintenance-savvy owner who is so inclined can perform virtually any sort ofmaintenance or alteration to his own aircraft, provided his mechanic is willing tosupervise and sign off the owner's work. If you enjoy swinging wrenches on your airplane,it pays to develop a relationship with an A&P who is comfortable in dealing withowner-performed maintenance, and then work to earn his trust by showing him that (1) youwon't start swinging wrenches without his prior approval, (2) you have reasonablemechanical knowledge and aptitude, and (3) you know when it's time to ask for help.

Keep in mind that you probably won't save a lot of money by doing your own work,particularly if you place a high dollar value on your time. I'm sure, for example, thatany professional twin-Cessna mechanic could have removed and reinstalled my alternator inhalf the time that I took to do it. On the other hand, if you're interested in learningmore about the mechanical aspects of your aircraft, there's simply no better way than tojump right in and get your hands dirty.
