By Tom Wilson
This story originally appeared in KITPLANES.
Of all the ways to get an RV to VNE, nitrous oxide injection is one of the more exotic. Something of a forbidden fire in the hot rodder’s bag of tricks, building big horsepower from nitrous is on one hand so easy engine builders say it’s your engine on drugs while more experienced practitioners get a little quiet when recalling fireballs and torched pistons. But to the high priests chanting the proper incantations, nitrous seems a short path to the winner’s circle.
It’s not so bad as all that when used, er, responsibly, and so we were cat-curious during the 2019 Reno pilgrimage when Todd Rudberg qualified his RV-8 at a heart-fluttering 277 mph. That’s an average speed in level flight around a turning course, mind you. It’s also the fastest lap we can find for an RV airframe at Reno, which means Todd has outpaced even Bill Beaton’s supercharged 540 Harmon Rocket around the pylons. That’s saying something.

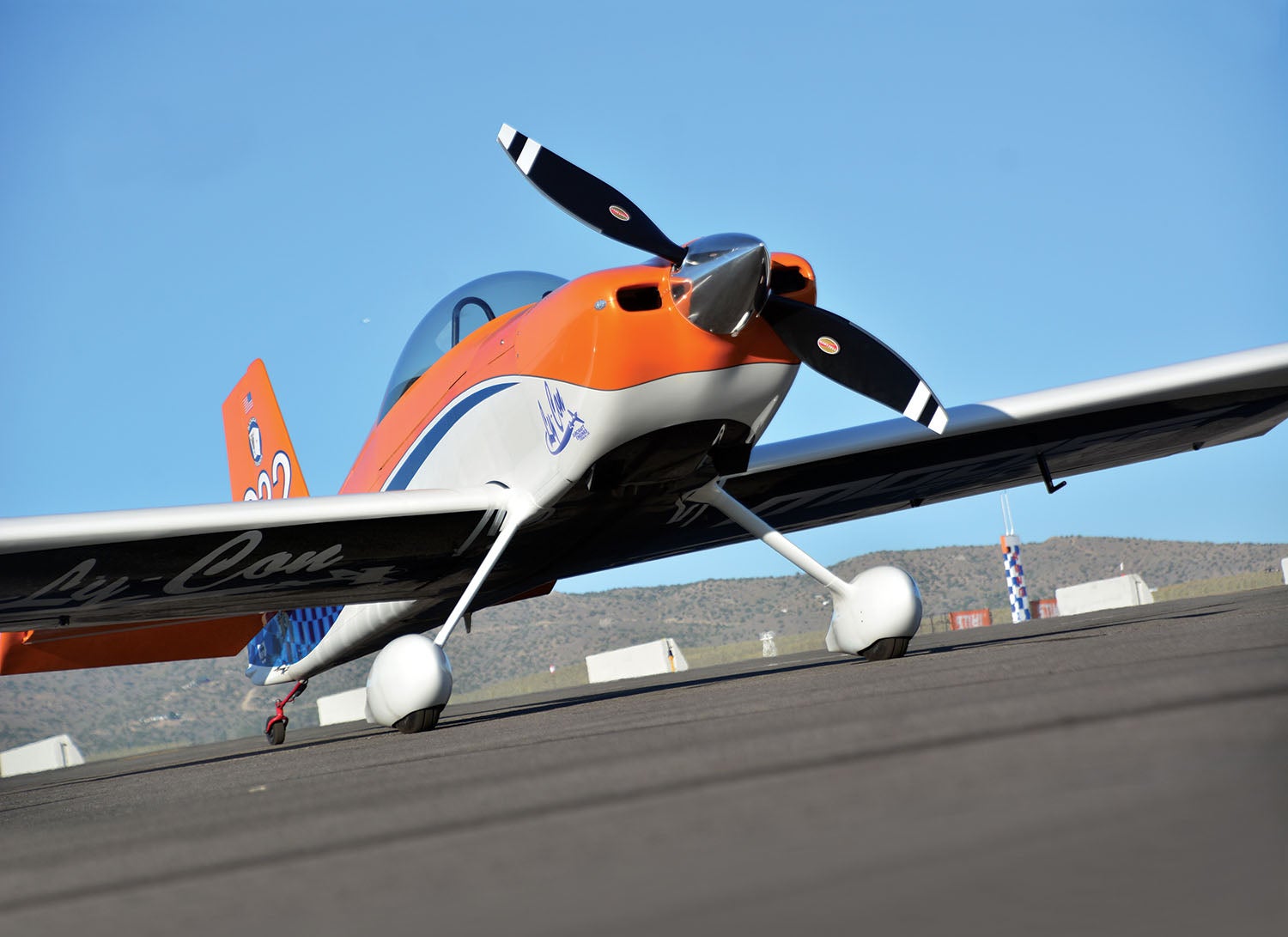

Turns out there’s nothing overwhelmingly sleek about Todd’s airframe, either, which if straighter than normal and aside from a custom canopy and a few other detail improvements is at least visually the same ’ol bus 1500 other RV-8 builders are enjoying. So most of that speed seems to be coming from a fairly regular Ly-Con IO-390, a good constant-speed and enough blue bottles to recreate a full season of Sea Hunt.
Furthermore, a quick glance at Mr. Rudberg’s plane shows a level of execution that typically follows developed thinking, and this is the case with Todd, who thanks to a CFI dad, can’t remember a time outside of aviation. Originally starting out in the Marine Corps PLC program but quickly moving on to a career in aerospace engineering, Todd is a major player at Electroimpact in Mukilteo, Washington. There he puts his physics degree from the University of Washington to excellent use in robotized carbon fiber wing layups along with multiple other highly automated procedures for outfits such as Boeing, Airbus and Bombardier. Electroimpact machinery is currently building the spar and skin on the Boeing 777X wing, for example, so clearly Todd has the brains and resources for a little fun at Reno.
Todd originally built his RV-8 as transport to visit his children after divorce separated his family. And while that worked, he’s since cooled on the idea of flying IFR over the Cascades in little single-engine skeeters. Instead, his association with the Blackjack Squadron formation team lead him to Reno pylon racing in 2017. Jeff LaVelle, a Sport Class front-runner, is also a Blackjack Squadron member, and it was he who gave Todd the push to Reno.
Comprehensively Wrinkled
Just after his introductory year at Reno, however, Todd had an impactful meeting with a herd of runway-crossing elk in December 2017. He nearly escaped unscratched, but by just nicking one elk he lost a prop blade and suffered a nasty, gear-failing ground loop. In the resulting total rebuild his RV-8 was named Undaunted for its ability to rebound from the elk disaster, plus it gained several racing-bred improvements to the cowling, spinner and wing roots.
“Rebuild” is a bit light duty. As the elk-bit airplane was comprehensively wrinkled, Todd ended up buying an untouched RV-8 kit from a fellow with second thoughts on aircraft building. That kit was in upstate New York, and Todd ended up working with Wilson Champ in Pennsylvania on melding the original and new parts into what’s really a new, straight RV-8.
Working within his busy schedule, Todd made six 10-day trips to Pennsylvania, working very long days to put the aluminum together. Essentially a building partnership, the build with Wilson proved a great collaboration. “He’d have parallel but better ideas,” said Todd. “It was the funnest partnership I’ve ever had.” Avionics were handled in Washington by Todd and crew chief Colin Hover, and when the airplane was complete Todd and daughter Sarah flew it home via Nashville, New Orleans, Sedona and, appropriately enough, Reno. Not quite incidentally, Sarah just graduated from the family alma mater, University of Washington, as a mechanical engineer and Todd’s other daughter, Rebekah Horch, crews on the race plane as well.
For power, Todd knew he wanted a 390 Lycoming and nitrous combination. Because he regularly flies his -8 as daily transport and for formation flights, he wanted the RV-8 as stock as possible, ruling out turbos or big six-cylinder engines. That would conserve weight and preserve the pleasant Van’s handling because the nitrous system is designed to remove easily when not pylon racing. As Todd put it, “When I take the nitrous system off of that airplane, it is just a sweet-flying RV-8. It does have extra power from that IO-390 and it’s clean. But other than that, it’s a stock airplane that climbs at 2500 feet per minute or maybe more and cruises at 200 knots or 230 mph naturally aspirated in an altitude range of 5500 to 11,000 feet.”
Therefore, nothing overly special was done to the core engine as nitrous works best when assisting a well-developed naturally aspirated engine. Todd had Ken Tunnell at Ly-Con build his 390 Lycoming, noting, “You got to call Kenny if you are going to be racing.” Compression was set at 10:1 with Ly-Con’s NFS pistons, plus, “Kenny did whatever he does on the camshaft,” including diamond-like coating (DLC) the cam and lifters. Bendix mechanical fuel injection is used.
Adding Nitrous
Because Todd knew the common automotive nitrous kits were not up to aviation hardware standards or designed for long-duration use, he wanted to design and build his own custom nitrous system. “Since I was building the airframe almost from scratch already, I knew the weight and balance down pat, and I knew I had capacity for about 200 pounds back there [in the rear passenger seat]. So I went with the biggest bottle—20-pound bottles.” He calculated, “I could make big power for 10 minutes, and in qualifying I can make more than that [for a shorter period of time].”
Todd’s machinist background was handy when whittling out various small parts such as the nitrous manifold in the back seat. He admits there are a few commercially available Nitrous Express parts in his system, and that as a sponsor and from a hardware standpoint they’ve been a big help. But mainly he’s breaking new ground in running nitrous for such long durations. This includes the additional, standalone fuel system using NASCAR-quality Brown & Miller Racing Solutions lightweight hoses.
Operationally Todd’s system is purely mechanical with valves opening the separate nitrous and additional fuel systems. Each system is independent of the other and manually controlled, so this is at least simple engineering, especially on the nitrous side. All four bottles feed into the single manifold, and from there forward to the engine’s primer ports. A single needle valve from Nitrous Express allows manually tuning the nitrous flow. Todd runs the bottles to approximately 75 percent empty, which is when nitrous flow slows non-linearly as bottle pressure drops. Jetted for a 100-hp power boost there is, as calculated, about 10 minutes of nitrous on board.
The extra gasoline is also added mechanically by controlling fuel pressure at the regular Bendix system’s nozzles via another needle valve. “I monitor fuel flow and EGT to determine the proper fuel pressure setting…I am targeting a fuel flow to set the power and nitrous amount to maintain a mixture. It’s a lot of headwork and takes some hand-brain coordination. I bypass the RSA-5’s fuel system when in the race configuration. Adjusting fuel flow manually is tricky and the control is sensitive.” Indeed, to the point where Todd is considering a move to electronic fuel injection and incorporating the nitrous assist’s fuel needs into the EFI’s programming. This would greatly reduce his workload while racing, keeping his head up and out of the cockpit.
As if to illustrate the point, Todd got a little behind on his engine management during a heat race last year and sneezed the engine. Sneeze is the racer’s euphemism for an induction backfire (think gasoline bomb), or as the engineering-oriented Todd recalls, “Sneezes are high-energy events and should be avoided at all costs. It did no damage other than kill my fuel servo and scare the crap out of me. I saw the cowl expand and orange plasma escape through the cowl seams at the firewall. The motor would start and idle fine, but would not make any power and ran very lean and rough if you opened the throttle. Kenny really supported me…and overnighted mags and a fuel servo to me. However, by the time they arrived, another racer offered to let me use his fuel servo for the duration of Reno.”
Other Factors
Another racing consideration is the on-off nature of nitrous. Without the “squeeze” Todd’s RV-8 indicates 180 knots at normal rpm, which is a bit light when gaining speed with the larger-engined, sleeker airframe competition prior to the start. Going down the starting chute, speeds can be high—perhaps a worrying 300 mph (260 knots)—which doesn’t bother the Glasairs and SX300s, but even the most gung-ho RV driver squirms at such velocities.
Todd works off of indicated speed in knots when racing and has a personal limit of 235 knots IAS for the airframe, a speed he can likely exceed in level flight, much less coming down the starting chute. Therefore, at the start he has a power setting in mind, but then the pace plane might bring the field steeply down the chute one time and not so steeply the next. In short, Todd can be a busy, conflicted man at the start as he fiddles with his power knobs.
Also worth mentioning is the cost of nitrous. It’s an old saw in racing that nitrous systems are inexpensive to install compared to a turbo or supercharger, but after consuming enough nitrous the calculus goes the other way. Todd used literally over a ton of the stuff while testing and calibrating his system prior to Reno and goes through 10 bottles during race week. A volume discount arranged with Central Welding in his Seattle hometown helped with his first 3000 pounds of nitrous, and now with the initial testing completed he doesn’t need quite so much annually. Luckily crew chief Colin has a hazmat-endorsed driver’s license so the team can legally transport such large volumes of nitrous.
Finally, as with any power adder, Todd’s Lycoming heat-rejection needs have risen greatly. He answered with a homegrown water spray bar system added after the 2019 Pylon Racing School. This simply spritzes water on the outside of the engine increasing cooling via evaporation. The plastic water tank goes in the nose baggage compartment (a smoke system lives there when not racing) supplying the five gallons of water expended per race. That’s in addition to 60 pounds of nitrous, so Todd starts his races heavy—“weight is good coming down the chute”—and finishes noticeably lighter.
While we don’t expect to see a rash of bottle-fed RVs at the next pancake breakfast, racers such as Todd are pioneering a modern nitrous reprise that could be useful to the sportier among us. Coupled with electronic controls it seems a plausible burst of power for when turbos and blowers are a little too much.
Name Calling
Probably due to its somewhat exotic reputation, nitrous oxide injection has collected quite a number of nicknames, mostly from drag racers. There you’ll hear it called everything except “nitrous oxide” save for in the rule book. At the track it’s NOS, spray, squeeze, fog, on the bottle, on the jug, juice, gas, laughing gas or giggle gas. The Luftwaffe labeled their system GM-1 (Göring Mischung 1), the sober types in medical circles use it as an anesthetic and call it by its proper name while the cheap-high crowd no doubt has its own street slang for the stuff, but we’re unfamiliar with it. —T.W.
2019: Opening Shot in a Nitrous War?
Nitrous oxide seemed the power adder du jour with the fixed-gear Reno Sport class racers in 2019. Not only did Todd Rudberg get everyone talking with his RV-record 277 mph qualifying run, but Neil Wischer of Milwaukee, Wisconsin, also “juiced” his RV-8. Neil qualified a bit slower than Todd, but had a mechanically drama-free race week while Todd missed Saturday’s heat due to a failed mechanical fuel pump (a case of infant mortality) and therefore had to start eighth on Sunday. Thus, for the Bronze final, Neil ran a tight-to-the-pylons second place the entire race while Todd actually ran qualifying speed around the outside of the field the entire race to advance from eighth to third in a rare, thrilling display of passing. Officially Neil ran 268 mph, Todd was a tick behind at 265 mph, while Elliott Sequin in the 274-mph six-cylinder, retractable-gear 300SX Wasabinought cruised to the win. Todd may have actually run as fast, or at times a nip faster, than Elliott, but had to cover a much longer distance.
Wischer’s plane is similar to Rudberg’s. Both are RV-8s, both feature warmed-up IO-390 Lycomings, but Wischer runs EFII’s System 32 electronic air/fuel engine management system. Control of his nitrous system is incorporated into the System 32’s adaptable software, thus the extra fuel and nitrous flows are computer controlled, relieving Wischer of much valve turning and toggle switching, plus keeping the gasoline and nitrous flow right on tune. Like Rudberg, post-race Wischer simply turned off his nitrous system and flew home lean-of-peak, thus highlighting the dual-nature of nitrous injection. —T.W.
Understanding Nitrous Oxide
Nitrous oxide is a liquid when compressed and a gas at room temperature consisting of two inert nitrogen atoms and one rather dynamic oxygen atom. When injected into the inlet of an internal combustion engine, the nitrogen pretty much just takes up space, but the oxygen is ready to burn. In other words, simply blowing nitrous into an engine leans out the air-fuel mixture or is similar to packing in more atmosphere as done by a super- or turbocharger. For nitrous to do any good a corresponding increase in fuel—gasoline—must be introduced along side it. Therefore, “nitrous” systems are actually an additional air-fuel delivery system running sequentially with the engine’s standard inlet system. The energy to inject the nitrous is provided by the compressor in some distant shop that packed the stuff into a bottle to the tune of 900 psi. That compressor takes the place of crankshaft energy used by a centrifugal supercharger or the exhaust energy powering a turbocharger. You literally pay for that energy when refilling your nitrous bottles, but when you’re in the airplane and hit the “squeeze,” it’s as if the energy to run the system is free, unlike the blower or turbo which extracts its pound of horsepower flesh to operate. This is one reason why nitrous is so powerful; at the point of consumption its power benefit is delivered for no apparent engineering cost. Another reason nitrous is so prodigious is because of its powerful cooling effect when changing state from liquid to gas as the nitrous leaves its highly pressurized bottle to the low-pressure engine environment. This cooling increases the air-fuel charge density and reduces the chance of detonation. Elevated cylinder pressure is thus supported either by retaining high compression ratios (turbos and centrifugals require lower compression ratios) or by running more nitrous than would work absent the cooling effect.
System Components
In typical practice—not that Todd Rudberg in our main story much followed this pattern—a nitrous system consists of pressurized nitrous in a bottle(s), some high-pressure delivery lines, solenoids to turn the flow on/off, a simple electrical control circuit for the pilot to operate the system (turn the solenoids on/off), plus some parallel way of increasing gasoline flow when the nitrous is being delivered. Nitrous gas is often routed via small-diameter, high-pressure lines to either a single point in the inlet (often a thin plate just under the carburetor) or sometimes to each cylinder, much like a traditional Bendix-style mechanical fuel injection system. Sophisticated automotive drag race engines sometimes employ both delivery systems when delivering 2000+ hp of the stuff. At the terminus of a nitrous line a removable jet is fitted to regulate nitrous flow. Simple jet changes thus control power output. Delivering the extra fuel is often done on carbureted engines by using separate fuel lines to a single injector just downstream of the carburetor or throttle body (typically the same thin plate the nitrous is plumbed to). Or, again, just like a Bendix fuel system does, to each cylinder. In either case there is a need to provide fuel pressure, usually by tapping into the existing fuel system. So, all said, there could be a small forest of fuel and nitrous lines running to the cylinders or just one each fuel and nitrous line running to below the throttle body (carburetor or fuel servo), plus a bit of electrical wiring and one each nitrous and fuel solenoids. Alternately, on fuel injected engines (either mechanical or electronic fuel injection) the supplemental fuel is often delivered simply by increasing the fuel pressure in the engine’s native fuel system. If the engine is computer controlled, the nitrous delivery can be integrated into the engine management and be rather complex, such as ramping up over an rpm range or many other parameters. In carbureted engines nitrous systems tend to be as simple as possible and offer one “hit” of nitrous. It’s either on or off, and such systems are typical in aviation. But in automotive drag racing it’s also common to have two or even three nitrous stages installed. The first stage could deliver “a 50 hit” meaning 50 hp, the second stage an additional 125 hp and the third stage another 50 or 200 hp or what have you. This is typically done to ramp up the power delivery to avoid losing traction at the tires. It’s also handy to only use as much power as needed to win. In aircraft, single stage systems are the norm because there is little need to ramp in the power. A single stage can supply all the nitrous needed before exceeding the engine’s mechanical limits and are less expensive and complex. Plus, a computer-controlled nitrous system can replicate a multi-stage mechanical system with far less hardware, should you have electronic engine management and perceive the need for a ramped application. More precise air-fuel ratios over a wider range of weather are more easily possible electronically as well. Apparently the first use of nitrous on aircraft was by the Germans in WW-II when trying to improve fighter performance at high altitude late in the war. They eventually abandoned their add-on nitrous system in favor of a combination of water injection and increased supercharger boost. Later, Unlimited air racers at Reno have run the stuff for a momentary power boost during qualifying or tactically while racing for position (Rare Bear was famous for this). Aerobatic competitors have found it useful for extending up-lines, STOL people like it for small sandbars on hot days, but we know of no factory installed nitrous systems in aircraft.
Too Good To Be True?
Nitrous systems are often deceptively simple, seemingly inexpensive and very powerful. And when used sparingly, they can be all these things and a huge help for little money. But…the call of nitrous nirvana beckons to our greedy and impulsive nature and is often over-applied or mishandled, sometimes spectacularly. Then, like a powerful but impassive genie, it can break and burn engines with unforeseen savagery. Like any highly boosted engine, when things go wrong with a big nitrous load, they go really wrong really fast. And even when running correctly, big nitrous hits take their toll on engine TBO. More power means more mechanical and thermal stress, and our light, air-cooled engines do not have huge strength reserves or an appetite for thermal spikes. Racers aren’t so worried about this, but daily driver fans see this differently. It all depends on how much and how often the nitrous is used. A few seconds of a 25-hp boost during a few high-country takeoffs per year shouldn’t amount to much; extracting 100 extra horsepower for 10 continuous minutes in a Reno race is altogether something else. Nitrous also requires much maintenance (filtering, changing and filling bottles) and tuning, largely because the air/fuel ratio varies as the bottle temperature rises and falls with the ambient temperature. It’s like having a fuel pump that wanders with the weather. Auto racers often tune the system to run overly rich, then raise the bottle temperature with a band-type electrical heater (more complexity) to lean the air-fuel ratio. This gives needed air-fuel ratio control over finicky, highly tuned systems, but is another thing to pay attention to. On hugely hot days racers may be forced to leave their nitrous bottles in the cab of the tow vehicle with the engine and air conditioning running all day. More practically, simple enthusiast systems just tune for the coolest, most dense air, then pay a small performance reduction price in all other weather. Expenses with nitrous are ongoing because the bottle(s) always need filling. A blower or turbo gets into your checkbook once, but the nitrous system, while often initially less expensive, keeps pecking away at the bank account. Furthermore, the power boost is noticeably limited by the never-enough amount of nitrous that can be carried. There’s no way nitrous can be used continuously for hours, as with a turbo or blower, because there is no way to carry that much. Nitrous is also an all-or-nothing power adder. It’s on or off with no in-between; blowers and turbos can be throttled. In small aircraft nitrous also takes up precious space and has significant weight and balance implications. These can be mitigated by taking the heavy, bulky bottles out when cruising with passengers, but then you don’t have your power adder. On the other hand, nitrous is really strong stuff and for momentary power boosts is a compelling, often affordable, solution. But casual users must exercise prudence or investigate more mainstream paths to power. —T.W.
Photos: Tom Wilson
